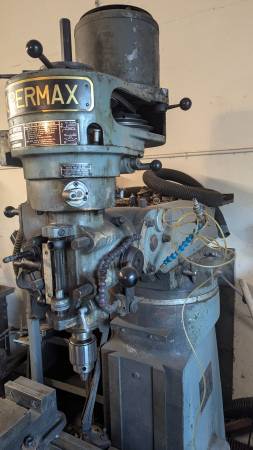

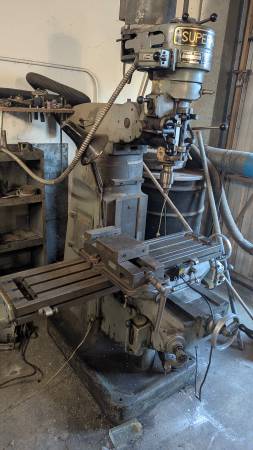

Supermax Milling Machine, YCM-1 1/2 VS - $2,500
make / manufacturer:
Supermax
model name / number:
YCM-1 1/2 VS
QR Code Link to This Post
S/N: 85-1214849
Specifications:
Table Size: 9″ x 49″
Longitudinal Table Travel: 34″
Cross Travel: 12″
Vertical Knee Travel: 16″
Ram Travel: 12″

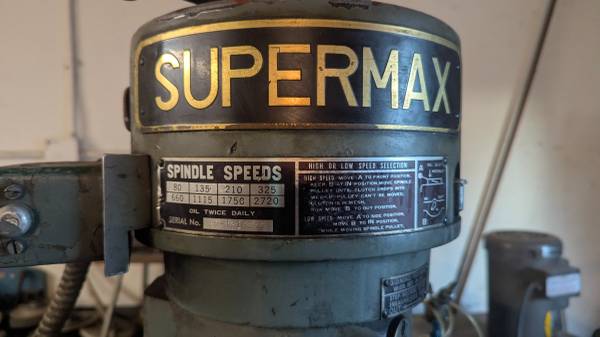

Spindle Speed: 60 – 4,200 RPM, Variable
Spindle Taper: R-8
Quill Travel: 5″
(3) Quill Feeds: .0017, .0032, .0053 IPR
Head Tilt, Front to Back: 45°
Head Swivel, Left to Right: 90°
Motor: 2 HP / 230v, 460v / 3ph
Mechanical Specifications:
Dimensions: 94″ x 63″ x 81″ H
Weight: approx. 2,200 lbs.
You will have to pick up and arrange for loading.
$2,500 OBO
Email or text only 562-265 eighty eighty
