KwiKool 29,500 BTU AC - $650 (Riverside)
condition:
good
make / manufacturer:
KwiKool
model name / number:
KIB3021-3
size / dimensions:
20" x 41" x 43"
QR Code Link to This Post
Description
The Model KIB3021-3 (nominal 2.5-ton or 29,500 BTU) is the smallest unit possible in size and capacity in The Iceberg Series, Kwikool’s Flagship Line of portables for both primary and backup air conditioning. With its full-featured design, high sensible cooling, and balanced air system, the KIB3021-3 is the perfect solution for cooling small server and IDF rooms. The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series outperforms, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.
All Iceberg Series units come standard with Kwikool’s exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency. The KIB3021-3 runs on a standard 230-volt/20-amp circuit with an automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use.
Features
29,500 BTU/H – 2.5 Ton capacity air-cooled
Compact yet powerful
Wide operating range of 60°F - 110°F
ETL and CETL listed to UL and CSA standards
Includes Kwikool’s Exclusive I/O Integral Condenser where both inlet and outlets are ductable, without costly and bulky add-on kits
Multi-function microprocessor control with a large, easy-to-read LCD display
Easy-touch control pads make changing system settings a snap
Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
Input/Output Alarm Contacts for connection to building systems
Internal high lift condensate pumps and a 5-gallon reservoir tank for total condensate flexibility
Condensate overflow protection
3 fan speeds
Auto speed – automatically sets fan speed based on heat load demand (not available on single speed models)
Thermostatic Expansion Valve
Heavy duty compressor with automatic restart and short cycle protection
Motors and compressors have overload protection
High-pressure safety with manual reset
Low-pressure safety with automatic reset
Automatic freeze protection using hot gas bypass and fan cycling
Low ambient controls
Heavy-duty locking casters
Rifle tube coils for efficient heat transfer
Fully insulated, heavy duty galvanized steel cabinet with Kwikool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance, and quiet operation
Sight glass with moisture protection
Easy access service door
Shraeder service ports
Specifications

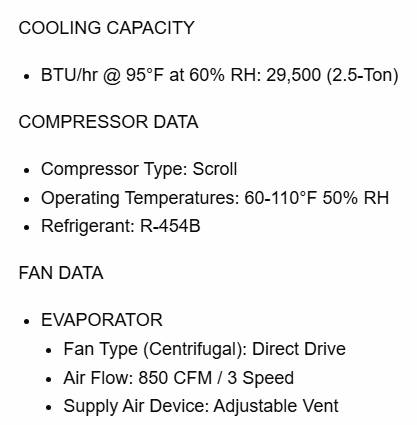

COOLING CAPACITY
BTU/hr @ 95°F at 60% RH: 29,500 (2.5-Ton)
COMPRESSOR DATA
Compressor Type: Scroll
Operating Temperatures: 60-110°F 50% RH
Refrigerant: R-454B
FAN DATA
EVAPORATOR
Fan Type (Centrifugal): Direct Drive
Air Flow: 850 CFM / 3 Speed
Supply Air Device: Adjustable Vent
CONDENSER
I/O Integral Condenser: Balanced Air Flow
Fan Type (Centrifugal): Direct Drive
Air Flow: 1400 CFM
Condenser Duct Max Length: 25’
ELECTRICAL DATA
Power Supply: 230V Single Phase
Current Consumption: 14.4 Amp
Power Consumption: 3.20 kW
Max Circuit Breaker: 30 Amp
Recommended Breaker Size: 20
Min Circuit Ampacity: 16.55 Amp
Min/Max Voltage: 195-250
Power Cord Gauge/Length: 12/6’
Plug Configuration: NEMA 6-20
DIMENSIONAL DATA
Machine Dims: 20” x 41” x 43”
Approx Weight: 305 lbs
SAFETY DEVICE DATA
Compressor Overload: Internal
Fan Motor Overload: Automatic Internal
Evaporator Freeze Protection: Hot Gas Bypass
High Pressure Switch: Manual
Low Pressure Switch: Automatic
Compressor Short Cycle: Yes
Automatic Restart: Yes
Thermostat Type: Microprocessor/Digital
Condensate Pump Overflow: Yes
Condensate Tank Overflow: Yes
Optional Add-Ons
Return Air Door (RA-24)
Flange/Collar (DCR-14”)
Condensate Tank (TANK15)
Ceiling Kit (CK-24)
Chute Kit (KDC-24)
